Description

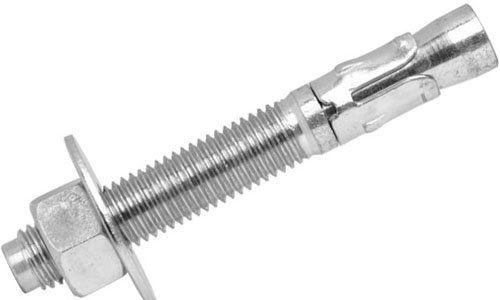

A "wedge anchor bolt" is a type of fastener designed specifically for solid concrete, where a threaded bolt with an attached expansion clip (the "wedge") expands inside a pre-drilled hole when tightened, securely anchoring itself into the concrete by wedging against the walls of the hole; essentially providing a strong, permanent hold for heavy-duty applications like attaching beams, signage, or machinery to concrete surfaces. Key points about wedge anchor bolts: Components: Threaded Anchor Body: The main bolt section with threads for attaching a nut. Expansion Clip: The "wedge" mechanism, a metal sleeve permanently attached to the anchor body near the tapered section, which expands when the nut is tightened. Nut and Washer: Used to tighten the anchor and distribute pressure evenly. How it works: Installation: Drill a precise hole in the concrete, insert the anchor bolt, and tighten the nut. Expansion: As the nut is tightened, the anchor body pulls upwards, causing the expansion clip to slide down the tapered section, expanding outward and gripping the concrete walls. Important considerations: Solid Concrete Only: Wedge anchors are designed for use in solid concrete only and should not be used in brick, block, or other materials with less structural integrity. Proper Hole Size: Drilling the correct hole diameter is crucial for optimal performance. Load Capacity: Choose a wedge anchor with a load capacity suitable for the weight of the object you are securing. Applications of wedge anchor bolts: Hanging heavy signs, Installing doors and windows in concrete structures, Anchoring structural beams and supports, Mounting heavy machinery to concrete floors, and Securing electrical equipment to concrete walls. How It Works: Wedge Anchors | Allfasteners Australia - YouTube 16 May 2019 — For more information on the product featured, visit: https://www.allfastene... Wedge Anchors use an expansion clip to g... YouTube · Allfasteners USA 0:25 Understanding Wedge Anchors: Types and Applications - Fastenere 26 May 2023 — Factors Influencing Load Capacity. The load capacity of concrete wedge anchors is influenced by various factors, includ... Fastenere Tips and Tricks Wedge Anchor - Concrete Fasteners A wedge anchor is a mechanical type expansion anchor that consists of four parts: the threaded anchor body, the expansion clip, a ... Concrete Fasteners
